Wave Disposable Automatic Biopsy System

Disposable full automatic biopsy device used for core sampling from soft tissue and organs

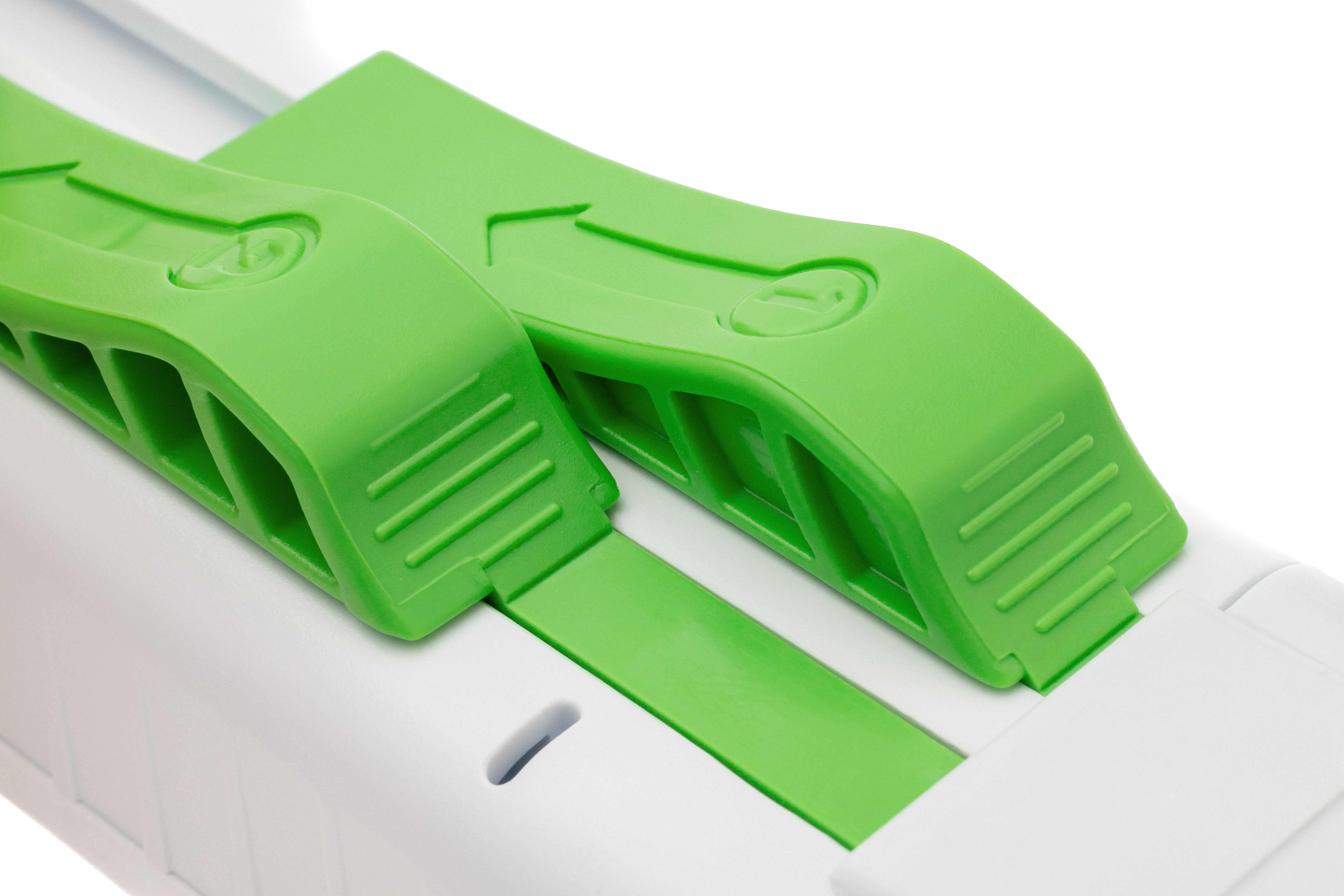

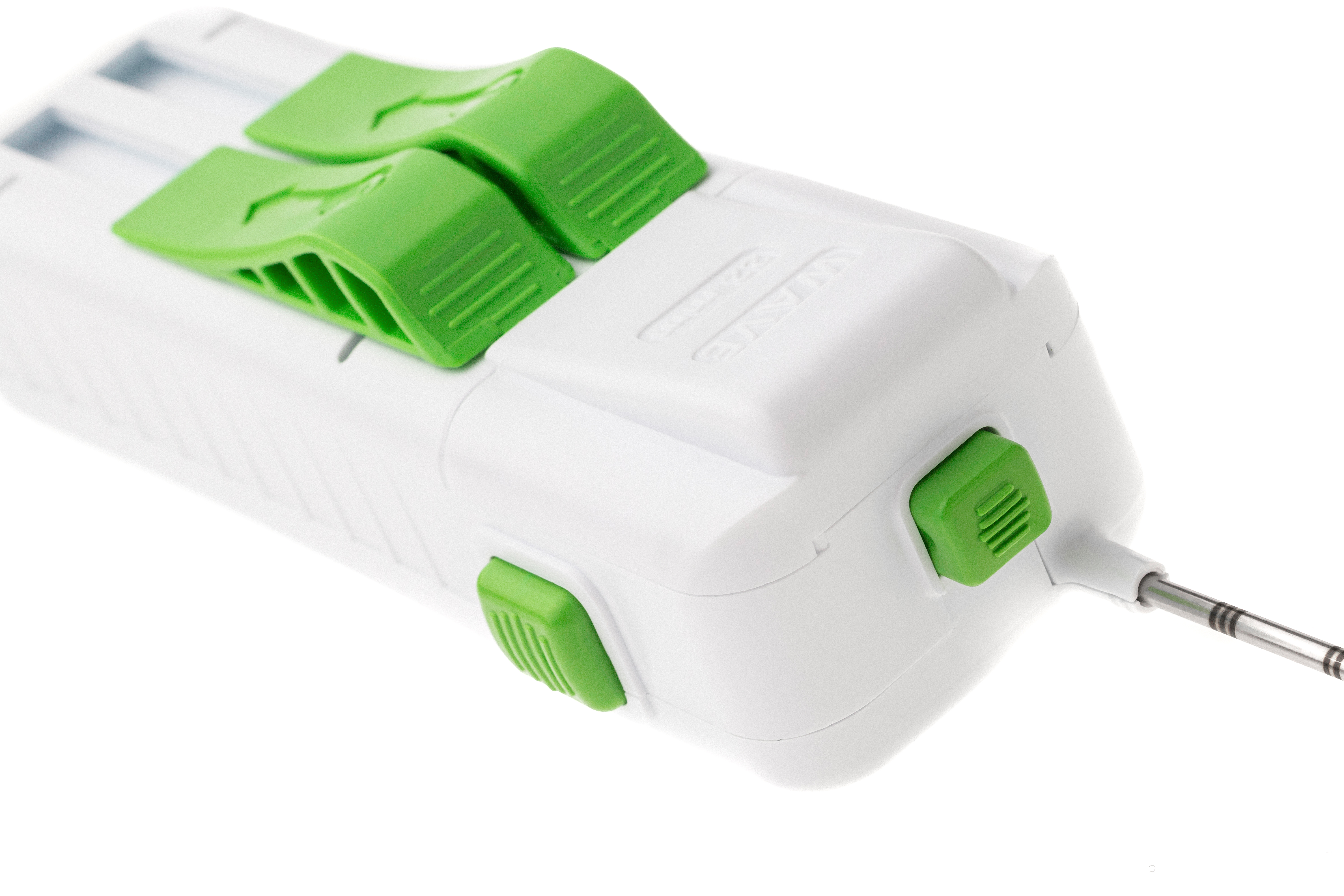

The Wave™ fully automatic disposable biopsy device is an ergonomic and user-friendly biopsy gun designed to provide a high-quality biopsy sample. Its rectangular box design enables a firm grip to effectively transfer thumb power during one-handed 2-stage cocking in procedures where you need true one-handed operation.

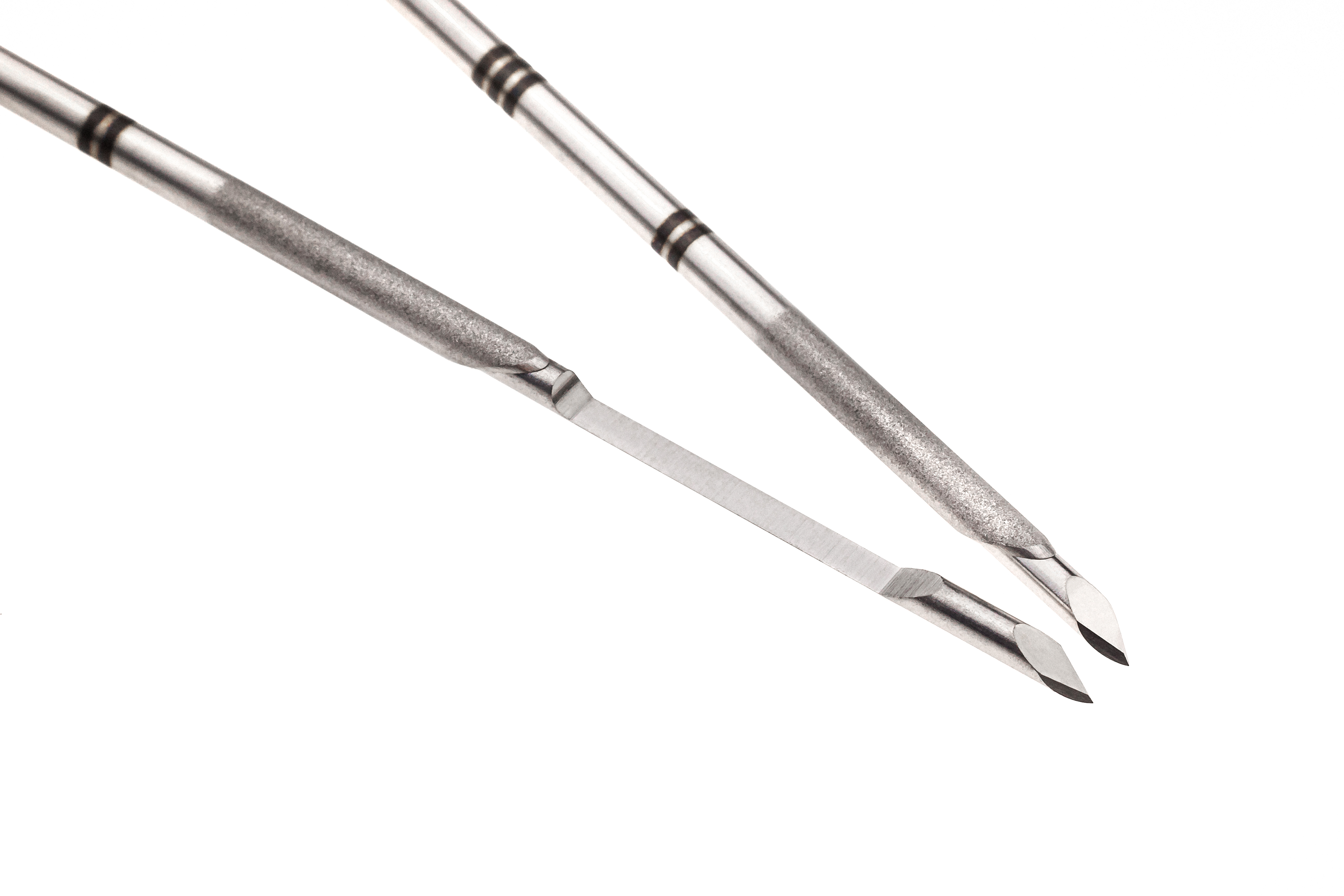

The universal coaxial needle comes with a sharp trocar tip and an extra thin wall tubing. The extra thin wall tubing leads to a larger inner lumen, allowing for a higher flow rate during injections. Color coding on the hub of the needle makes identification of gauge size easy. The universal coaxial needle is compatible with Wave™ automatic biopsy needle.

Features

  • Available in 15mm or 22mm throw length to accommodate individual procedural needs.
  • Ergonomic and lightweight design to improve control and minimize needle movement during imaging.
  • Available separately or as a set with a coaxial needle for improved procurement and inventory control.
Biopsy Needle Coaxial Needle Set
15MM throw 22MM throw     15MM throw 22MM throw 15MM throw 22MM throw
Ref. no. Ref. no. G Length Box Ref. no. Ref. no. G Length Length Box Ref. no. G Length Box
031409S 031409 14 9 CM 10 101304 101345 - 4.0 CM 4.5 CM 10
031410S 031410 14 10 CM 10 101305 101355 - 5.0 CM 5.5 CM 10 03C1410 14 10 CM 10
031412S 031412 14 12 CM 10 101307 101375 10 7.0 CM 7.5 CM 10 03C1412 14 12 CM 10
031415S 031415 14 15 CM 10 101310 1013105 - 10.0 CM 10.5 CM 10 03C1415 14 15 CM 10
031416S 031416 14 16 CM 10 101311 1013115 10 11.0 CM 11.5 CM 10 03C1416 14 16 CM 10
031420S 031420 14 20 CM 10 101315 1013155 10 15.0 CM 15.5 CM 10 03C1420  14 20 CM 10
031609S 031609 16 9 CM 10 101504 101545 10 4.0 CM 4.5 CM 10
031610S 031610 16 10 CM 10 101505 101555 - 5.0 CM 5.5 CM 10 03C1610 16 10 CM 10
031612S 031612 16 12 CM 10 101507 101575 10 7.0 CM 7.5 CM 10 03C1612 16 12 CM 10
031615S 031615 16 15 CM 10 101510 1015105 - 10.0 CM 10.5 CM 10 03C1615 16 15 CM 10
031616S 031616 16 16 CM 10 101511 1015115 10 11.0 CM 11.5 CM 10 03C1616 16 16 CM 10
031620S 031620 16 20 CM 10 101515 1015155 10 15.0 CM 15.5 CM 10 03C1620 16 20 CM 10
031625S 031625 16 25 CM 10     10     10 03C1625 16 25 CM 10
031809S 031809 18 9 CM 10 101704 101745 - 4.0 CM 4.5 CM 10
031810S 031810 18 10 CM 10 101705 101755 10 5.0 CM 5.5 CM 10 03C1810    18 10 CM 10
031812S 31812 18 12 CM 10 101707 101775 - 7.0 CM 7.5 CM 10 03C1812 18 12 CM 10
031815S 31815 18 15 CM 10 101710 1017105 10 10.0 CM 10.5 CM 10 03C1815 18 15 CM 10
031816S 31816 18 16 CM 10 101711 1017115 10 11.0 CM 11.5 CM 10 03C1816 18 16 CM 10
031820S 31820 18 20 CM 10 101715 1017155 10 15.0 CM 15.5 CM 10 03C1820 18 20 CM 10
031825S 31825 18 25 CM 10     -     10 03C1825  18 25 CM 10
031830S 31830 20 30 CM 10     10     10
032010S 32010 20 10 CM 10 101905 101955 - 5.0 CM 5.5 CM 10 03C2010 20 10 CM 10
032015S 32015 20 15 CM 10 101910 1019105 10 10.0 CM 10.5 CM 10 03C2015 20 15 CM 10
032020S 32020 20 20 CM 10 101915 1019155 10 15.0 CM 15.50 CM 10 03C2020 20 20 CM 10
