VitaFlow Liberty®
Designed for Transcatheter Aortic Valve Implantation (TAVI) to treat severe aortic stenosis
VitaFlow Liberty®, developed by MicroPort®, is designed for Transcatheter Aortic Valve Implantation (TAVI) to treat severe aortic stenosis, a condition where narrowing of the aortic valve limits blood flow from the heart. The system enables minimally invasive valve replacement, avoiding open-heart surgery.

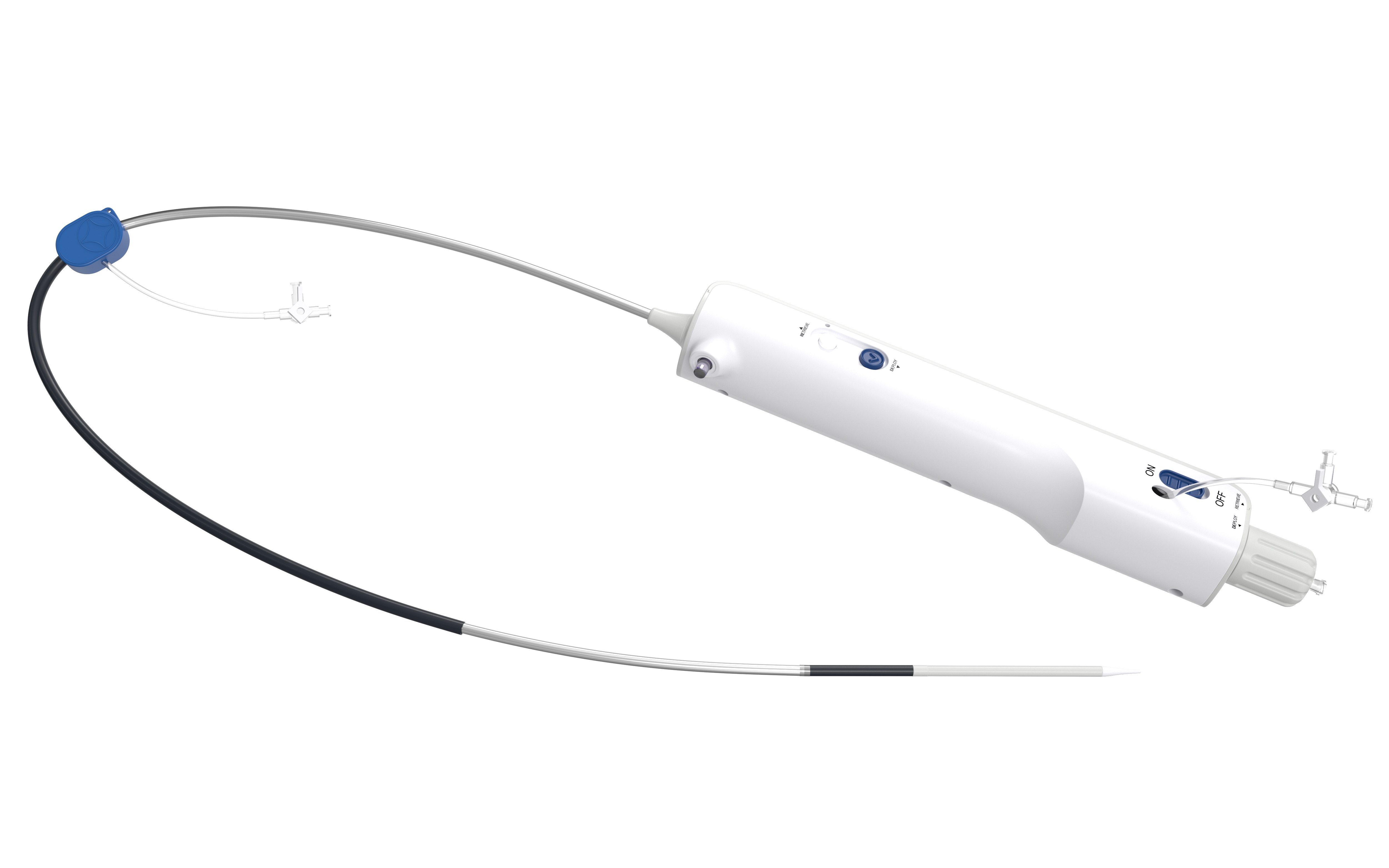

It features the world’s first motorized delivery system, enabling precise and controlled placement with the ability to recapture and reposition during deployment. Its flexible 360° design ensures easy positioning, and the valve can be fully retrieved and repositioned even when released to 75%, offering up to three retrieval opportunities per procedure.

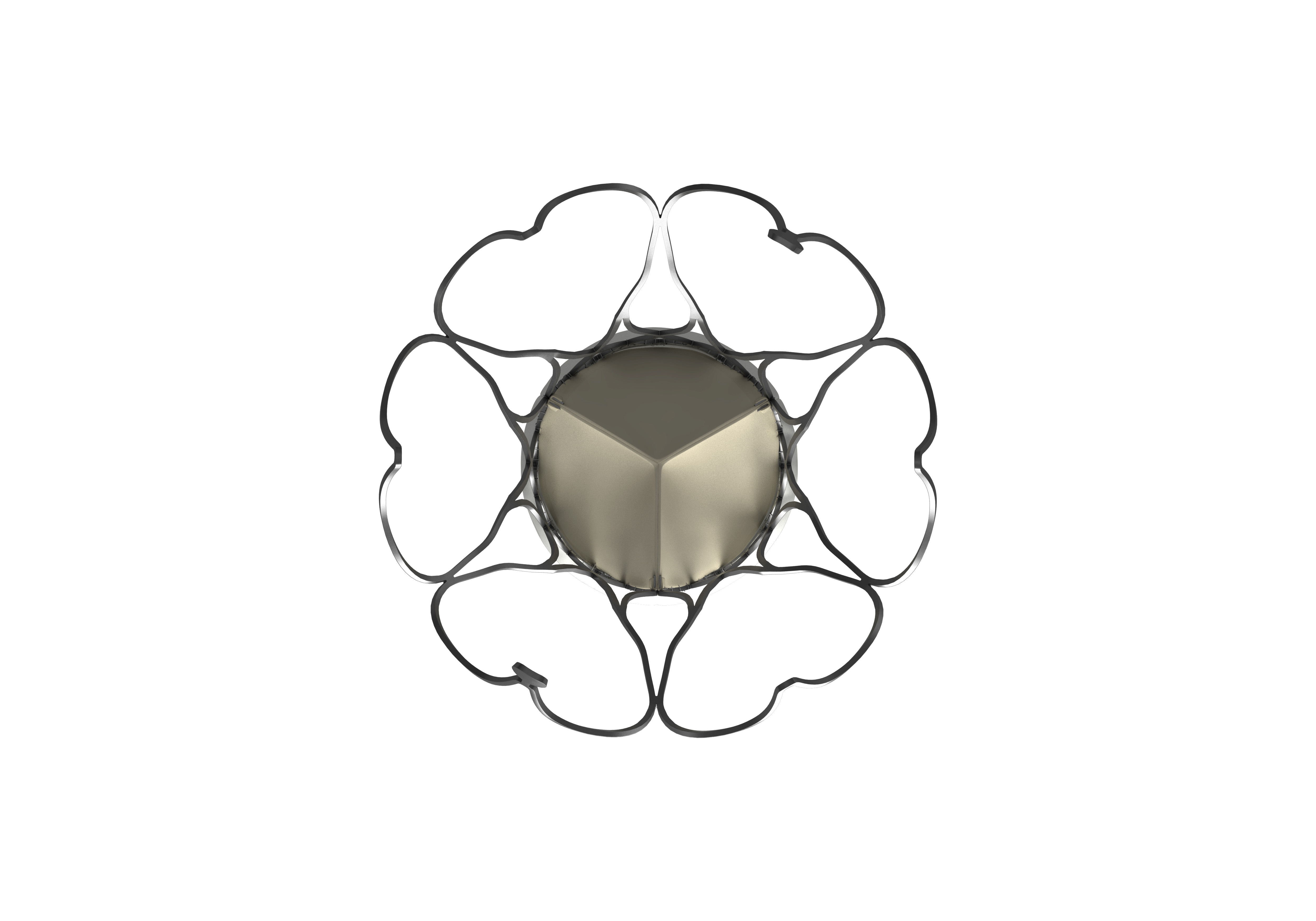

Its hybrid cell density frame provides flexibility, preserves coronary access, and ensures secure anchoring across diverse anatomies.
A double-layer PET skirt helps prevent paravalvular leaks, and VITAL-X™ technology protects the valve leaflets from calcification for extended durability.
Features
- Hybrid cell density frame for flexibility, access, and secure anchoring
- Tubular frame shape for accurate deployment and improved sealing
- Double-layer PET skirt to minimize paravalvular leak
- VITAL-X™ anti-calcification technology for extended durability
- Motorized delivery system for precise, controlled placement with recapture and reposition capability
| Ref. No. | Valve Size D (mm) | Aortic Annulus Diameter (mm) | Valve Height H (mm) | Box |
|---|---|---|---|---|
| TAV21 | 21 | 17–20 | 50 | 1 |
| TAV24 | 24 | 20–23 | 50 | 1 |
| TAV27 | 27 | 23–26 | 53 | 1 |
| TAV30 | 30 | 26–29 | 53 | 1 |
| Ref. No. | Actual Length L1 (cm) | Integrated Sheath Length L2 (cm) | Box |
|---|---|---|---|
| DSR21 | 112 | 30 | 1 |
| DSR24 | 112 | 30 | 1 |
| DSR27 | 112 | 30 | 1 |
| DSR30 | 112 | 30 | 1 |
