M•Biopsy® Semi-Automatic Biopsy Instrument
Spring loaded biopsy instrument
The M∙Biopsy® semi-automatic biopsy instrument is a lightweight and adjustable device with the flexibility of a semi-automatic mode of action.

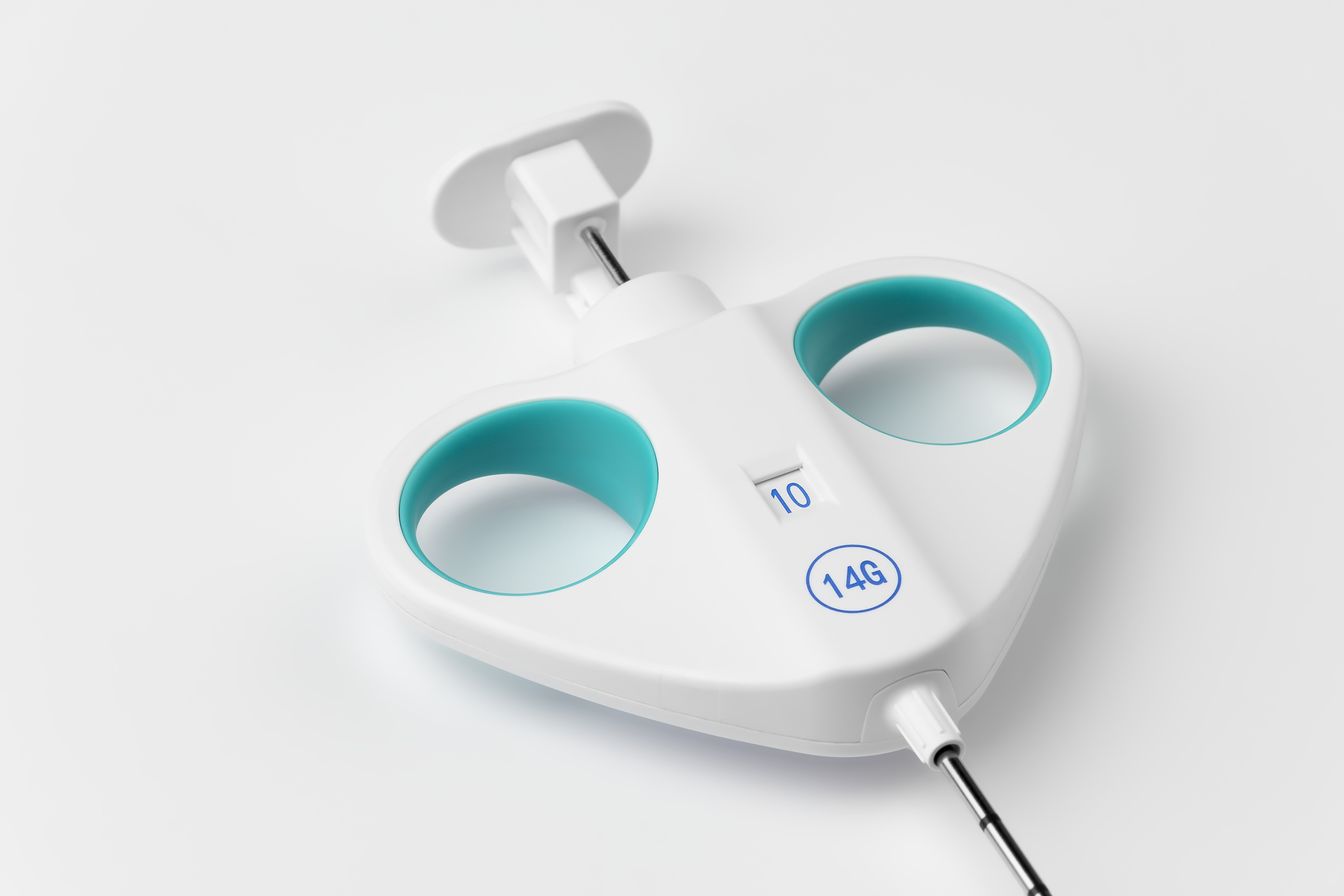

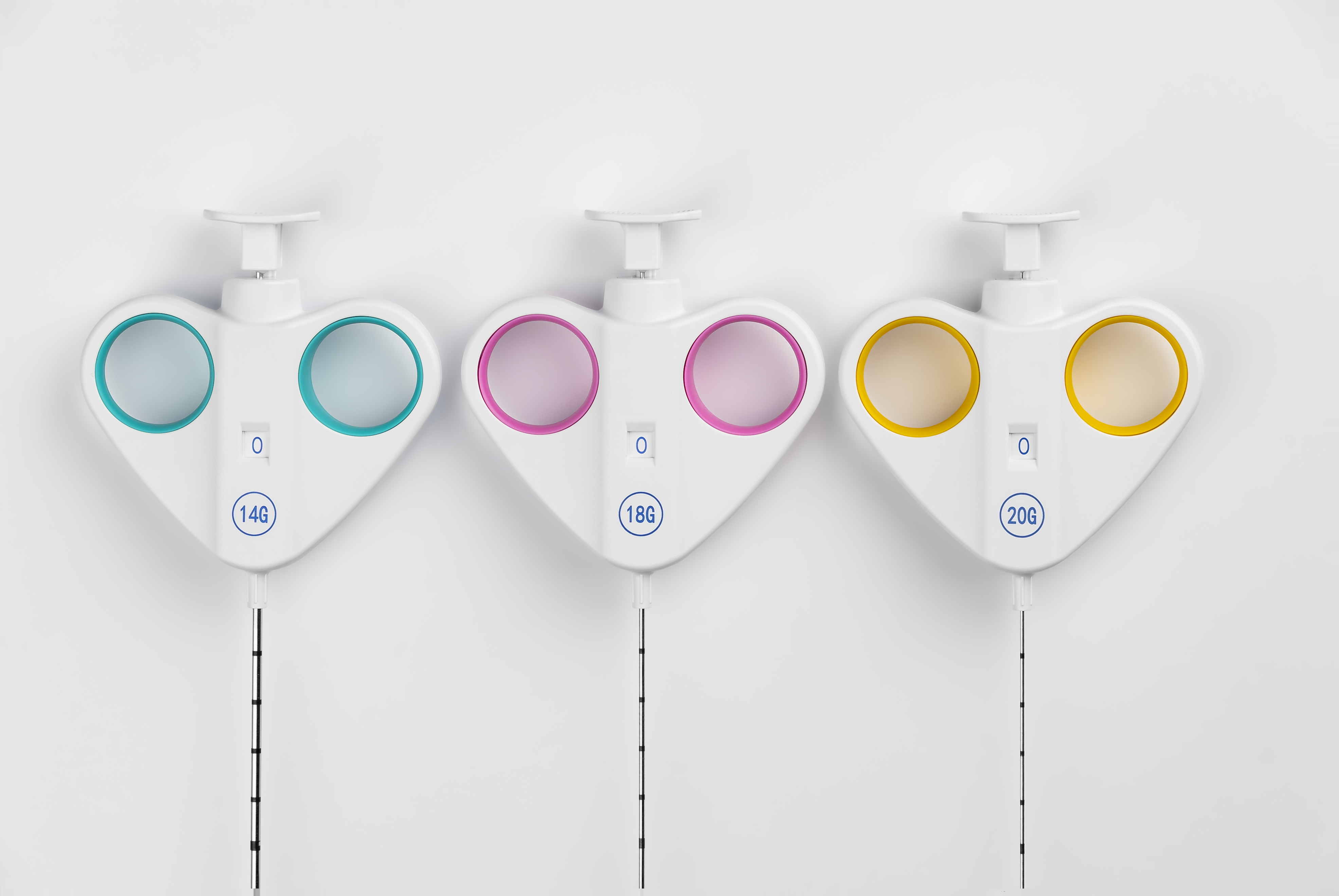

The full loop scissor design provides a solid grip, leading to easy, single stage cocking and excellent maneuverability during the procedure. Color-coding on the inside of the handle loops makes identification of accurate gauge size easy.
In addition, its lightweight design combined with a wide range of gauge sizes and needle lengths also makes it ideal for CT-guided biopsies.

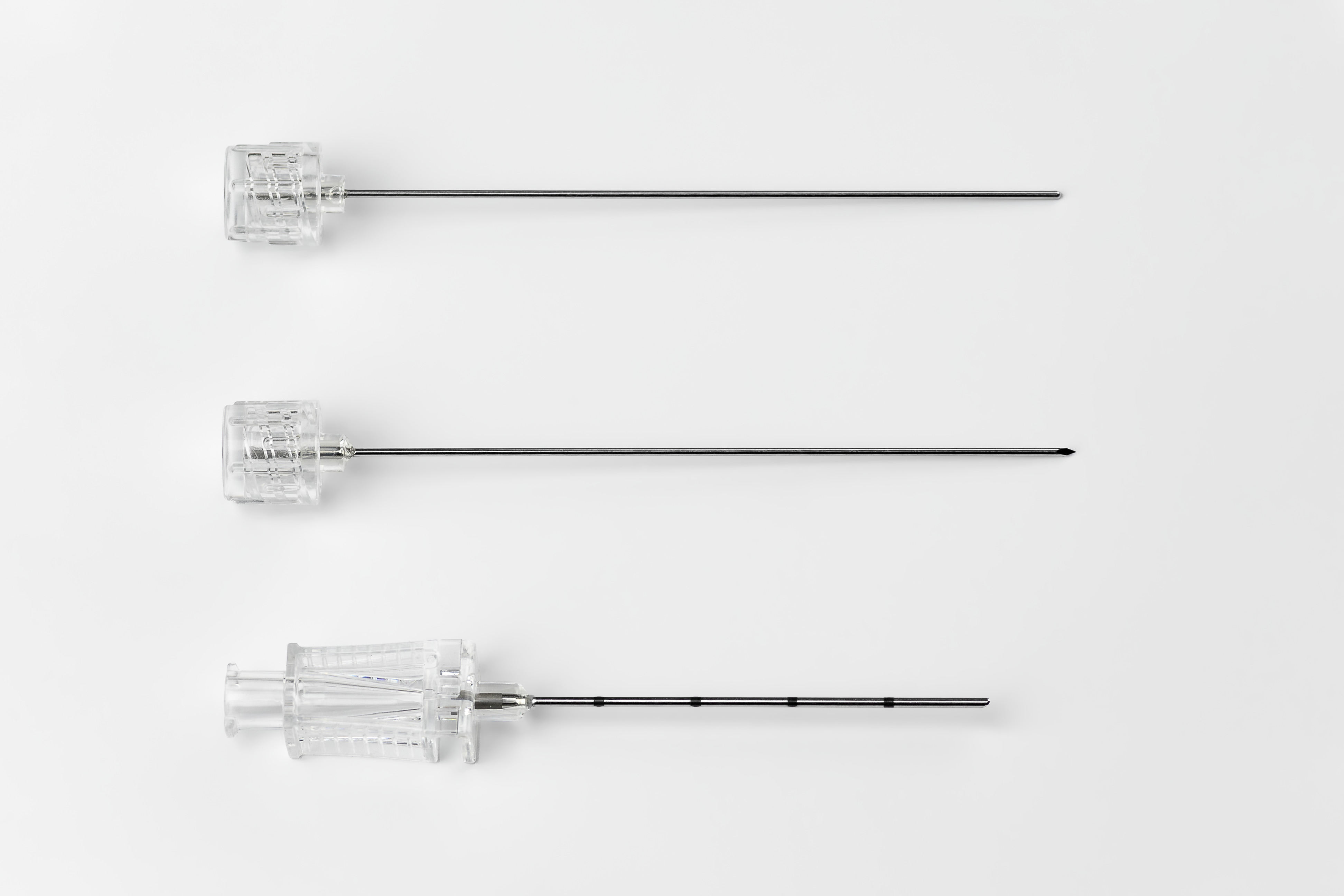

The M∙Biopsy® coaxial needle comes with a sharp trocar tip and a transparent needle hub. The needle features an additional blunt stylet to minimize damage to tissue, vasculature, and organs.
Features
- Adjustable throw length (10mm and 20mm) to accommodate individual procedural needs.
- Available as a single device or as a set with a coaxial needle for improved procurement and inventory control.
- Lightweight solid one-piece design makes it ideal for CT-guided biopsies.
M∙Biopsy® Semi-automatic Disposable Biopsy Needle
|
Ref. no. |
Gauge |
Length |
Throw Length |
Box |
|
N50114060-CE |
14 |
6cm |
10/20mm |
5 |
|
N50114100-CE |
14 |
10cm |
10/20mm |
5 |
|
N50114130-CE |
14 |
13cm |
10/20mm |
5 |
|
N50114160-CE |
14 |
16cm |
10/20mm |
5 |
|
N50116060-CE |
16 |
6cm |
10/20mm |
5 |
|
N50116100-CE |
16 |
10cm |
10/20mm |
5 |
|
N50116130-CE |
16 |
13cm |
10/20mm |
5 |
|
N50116160-CE |
16 |
16cm |
10/20mm |
5 |
|
N50116200-CE |
16 |
20cm |
10/20mm |
5 |
|
N50118060-CE |
18 |
6cm |
10/20mm |
5 |
|
N50118100-CE |
18 |
10cm |
10/20mm |
5 |
|
N50118130-CE |
18 |
13cm |
10/20mm |
5 |
|
N50118160-CE |
18 |
16cm |
10/20mm |
5 |
|
N50118200-CE |
18 |
20cm |
10/20mm |
5 |
|
N50118250-CE |
18 |
25cm |
10/20mm |
5 |
|
N50120060-CE |
20 |
6cm |
10/20mm |
5 |
|
N50120100-CE |
20 |
10cm |
10/20mm |
5 |
|
N50120130-CE |
20 |
13cm |
10/20mm |
5 |
|
N50120160-CE |
20 |
16cm |
10/20mm |
5 |
|
N50120200-CE |
20 |
20cm |
10/20mm |
5 |
|
N50120250-CE |
20 |
25cm |
10/20mm |
5 |

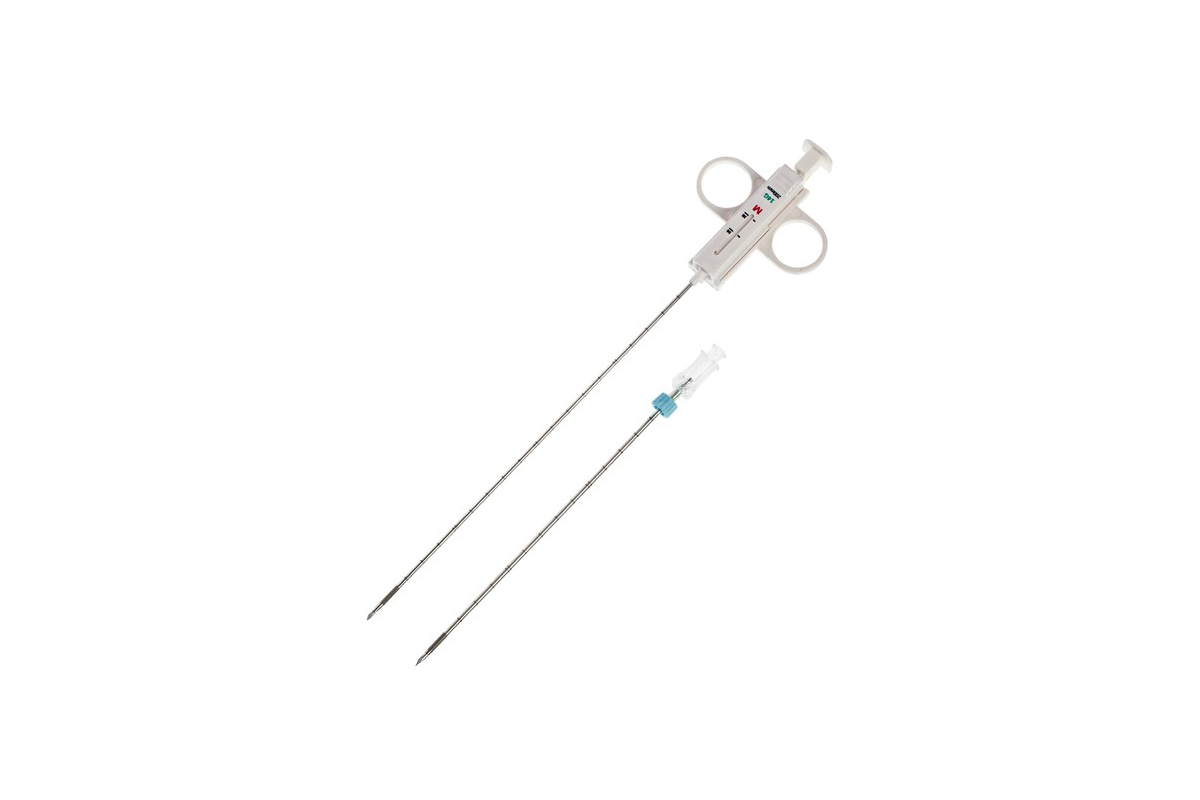

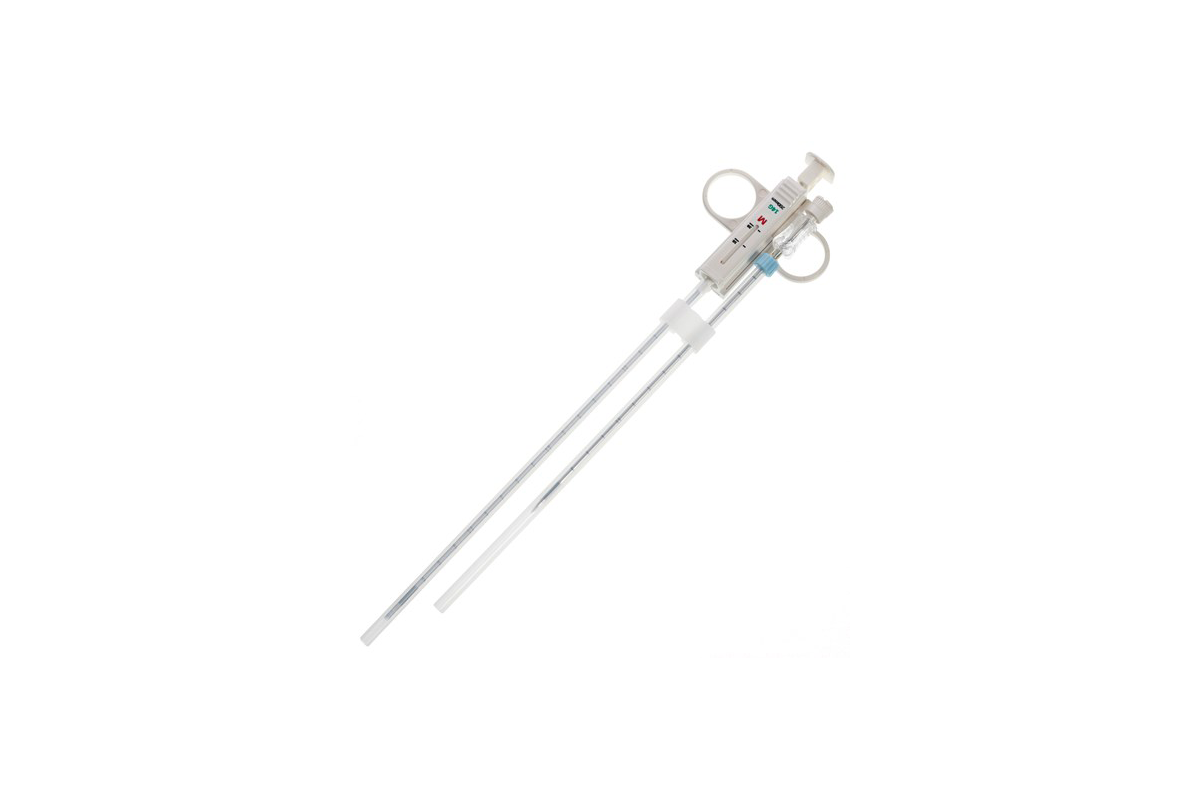

M∙Biopsy® Semi-automatic Disposable Biopsy needle set with matching coaxial needle
|
Ref. no. |
Gauge |
Length |
Throw Length |
Gauge |
Length |
With Blunt Needle |
Box |
|
NS5011410-CE |
14 |
10cm |
10/20mm |
13 |
48 |
Yes |
5 |
|
NS5011413-CE |
14 |
13cm |
10/20mm |
13 |
78 |
Yes |
5 |
|
NS5011416-CE |
14 |
16cm |
10/20mm |
13 |
108 |
Yes |
5 |
|
NS5011610-CE |
16 |
10cm |
10/20mm |
15 |
48 |
Yes |
5 |
|
NS5011613-CE |
16 |
13cm |
10/20mm |
15 |
78 |
Yes |
5 |
|
NS5011616-CE |
16 |
16cm |
10/20mm |
15 |
108 |
Yes |
5 |
|
NS5011620-CE |
16 |
20cm |
10/20mm |
15 |
148 |
Yes |
5 |
|
NS5011810-CE |
18 |
10cm |
10/20mm |
17 |
48 |
Yes |
5 |
|
NS5011813-CE |
18 |
13cm |
10/20mm |
17 |
78 |
Yes |
5 |
|
NS5011816-CE |
18 |
16cm |
10/20mm |
17 |
108 |
Yes |
5 |
|
NS5011820-CE |
18 |
20cm |
10/20mm |
17 |
148 |
Yes |
5 |
|
NS5012010-CE |
20 |
10cm |
10/20mm |
19 |
48 |
Yes |
5 |
|
NS5012013-CE |
20 |
13cm |
10/20mm |
19 |
78 |
Yes |
5 |
|
NS5012016-CE |
20 |
16cm |
10/20mm |
19 |
108 |
Yes |
5 |
|
NS5012020-CE |
20 |
20cm |
10/20mm |
19 |
148 |
Yes |
5 |
|
NS5012025-CE |
20 |
25cm |
10/20mm |
19 |
178 |
Yes |
5 |
