MaxBlate® Microwave Ablation System

A New Portable Generation

XphereTip® - ThyTip® - SureTip® Antennas

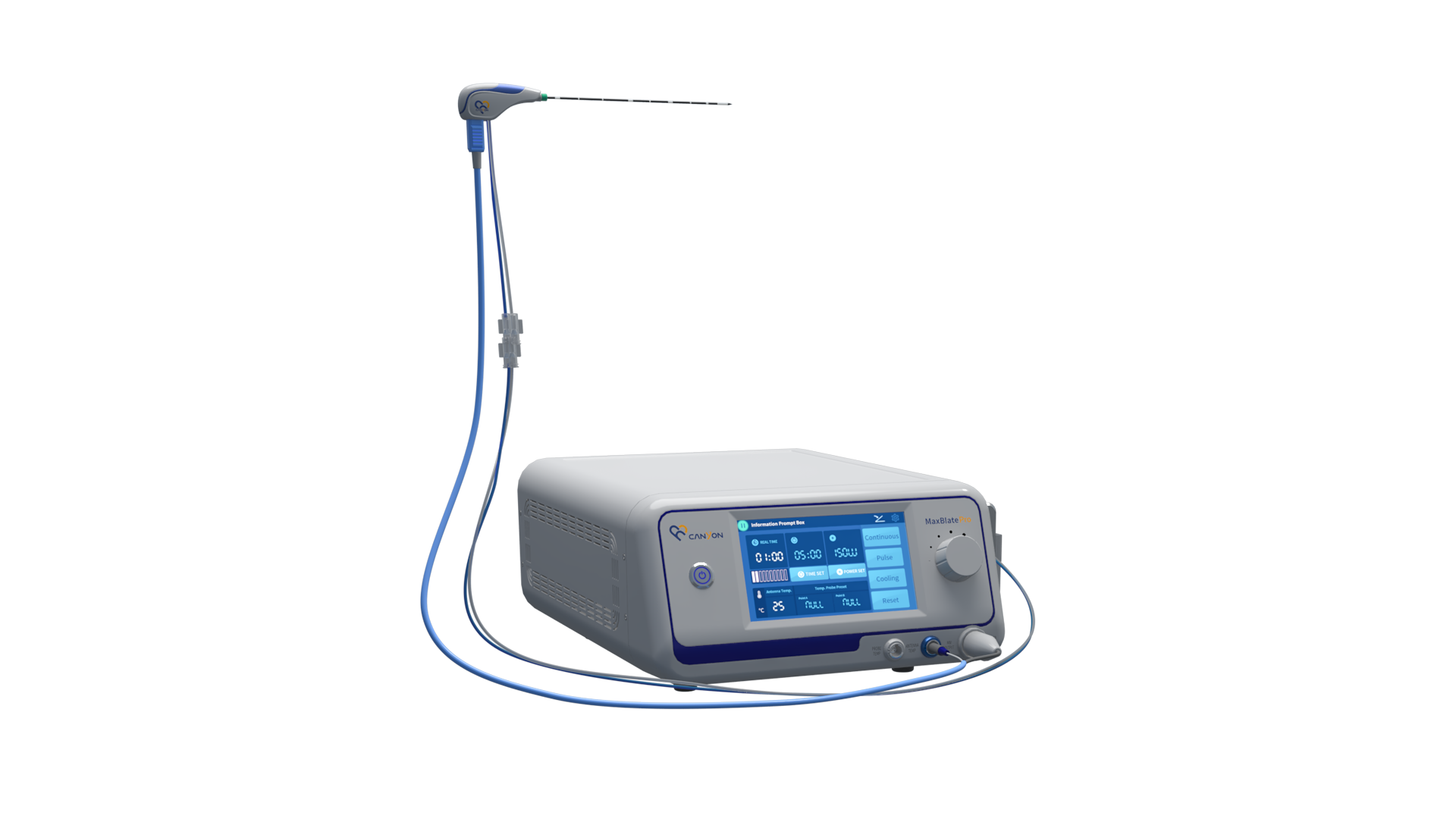

MaxBlate® Microwave Ablation System is a new portable solid state system that ensures stable microwave output. It comes with an interactive and sensitive touchscreen with adjustable power, time, and temperature which makes it very user-friendly. In addition, its innovative interface allows the user to monitor and provides instant feedback for safe use.

Continuous and pulsed modes are available for different clinical options.

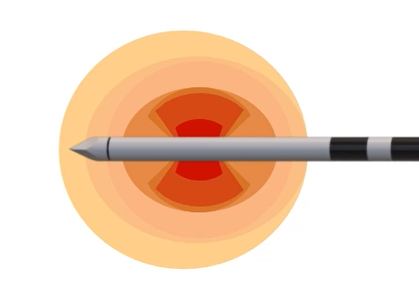

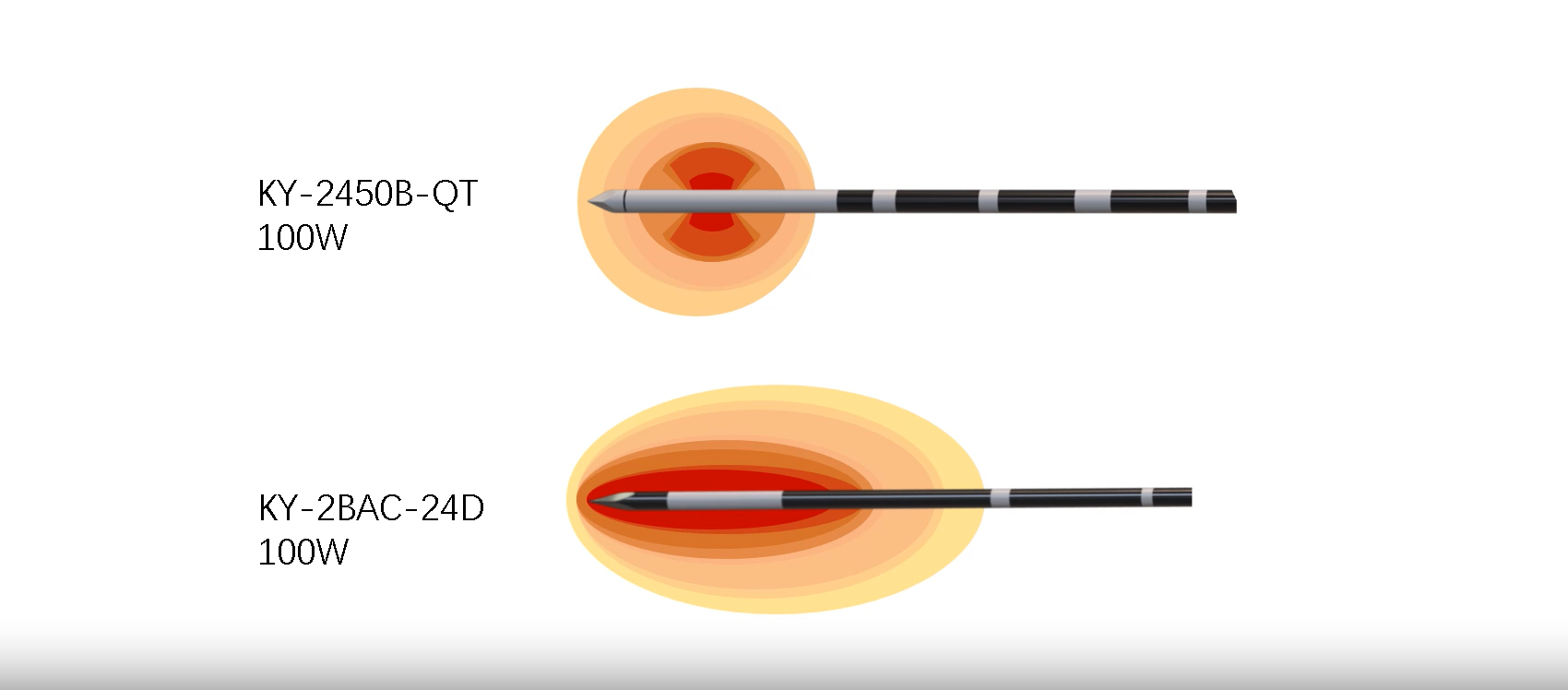

  • Patented radiation control technology and fully cooled antenna that guarantees an ultraspherical shape of the ablation zone
  • Enhanced product safety that gives the benefit of strength and stiffness
  • New coating which gives the user a perfect and smooth puncture movement, also avoiding tissue adhesion in an efficient way
  • Echogenic design that gives the user enhanced visibility
  • Available in 15G in different lengths
  • 3mm active tip optimized for the ablation of superficial and small thyroid with a uniform and well controlled result

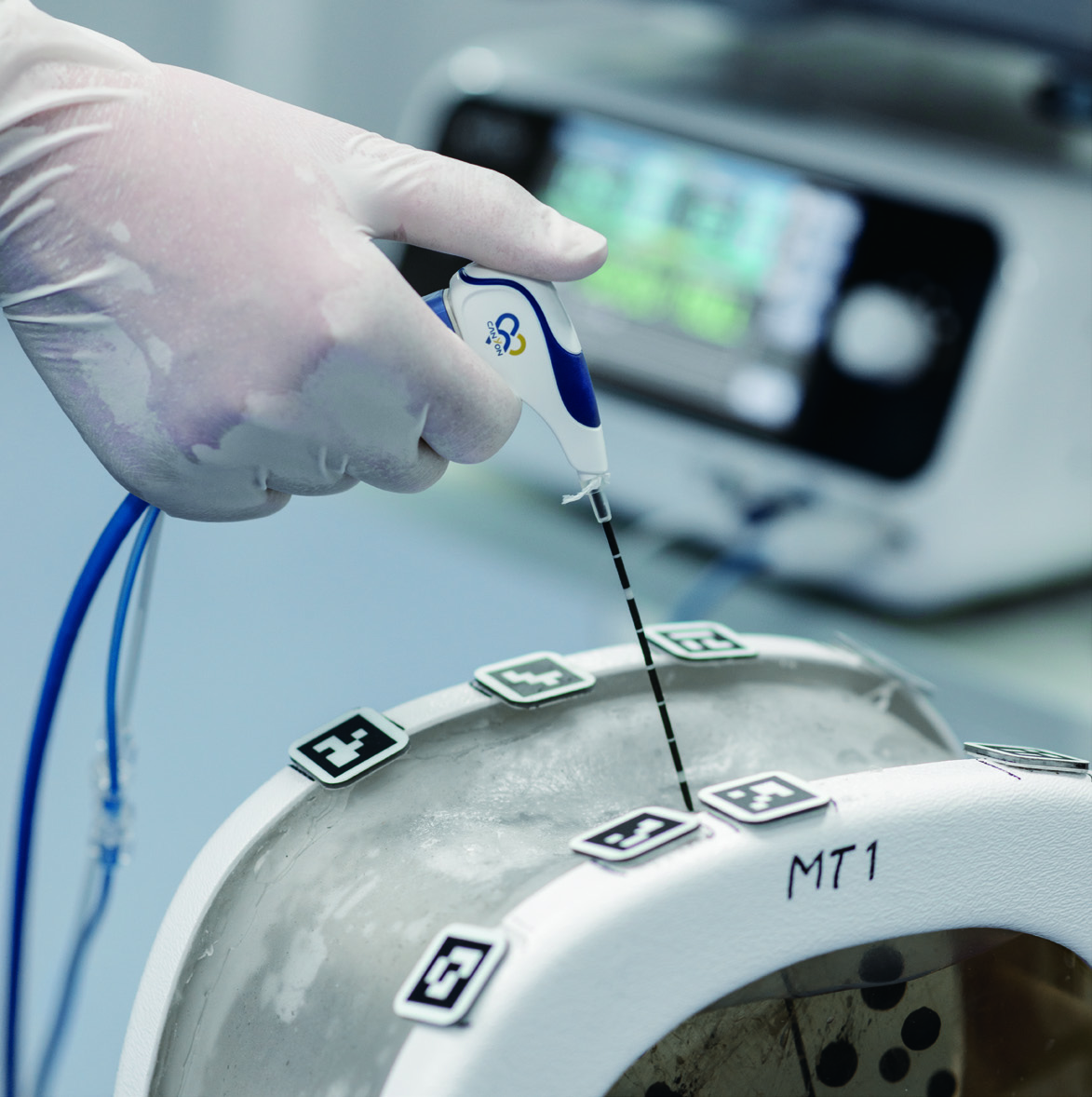

  • Excellent echogenicity and tip visibility for accurate guidance to the target area under ultrasound
  • Internally water cooled and operate by moving shot to avoid tissue overheating
  • As thin as 18G, less invasive
  • High performance material to ensure better connection and strength
  • Unique shaft coating material to avoid tissue adhesion
  • Sharp needle tip and thin diameter, making it less invasive
  • Internally water cooled antenna with intelligent temperature control
  • Signal enhancement design for better visibility under CT or ultrasound guidance
  • High efficiency detachable cable, unique enhanced connection with the antenna
Thyroid Ablation (ENG) Thyroid Ablation (US)
Fibroid Ablation (ENG)
Breast Ablation (ES)
Prostate Ablation (ENG)

Ordering Information

Ref. no Frequency Display Energy Output Time Setting Working Power Weight Size
KY-2100A 2450 Mhz 7 inch Touchscreen 5-150W 1-30 Minutes 100V-240V 50-60 Hz 12 kg 46x40x18cm
KY-2000A 2450 Mhz 7 inch Touchscreen 5-100W 1-30 Minutes 100V-240V 50-60 Hz 12 kg 46x40x18cm

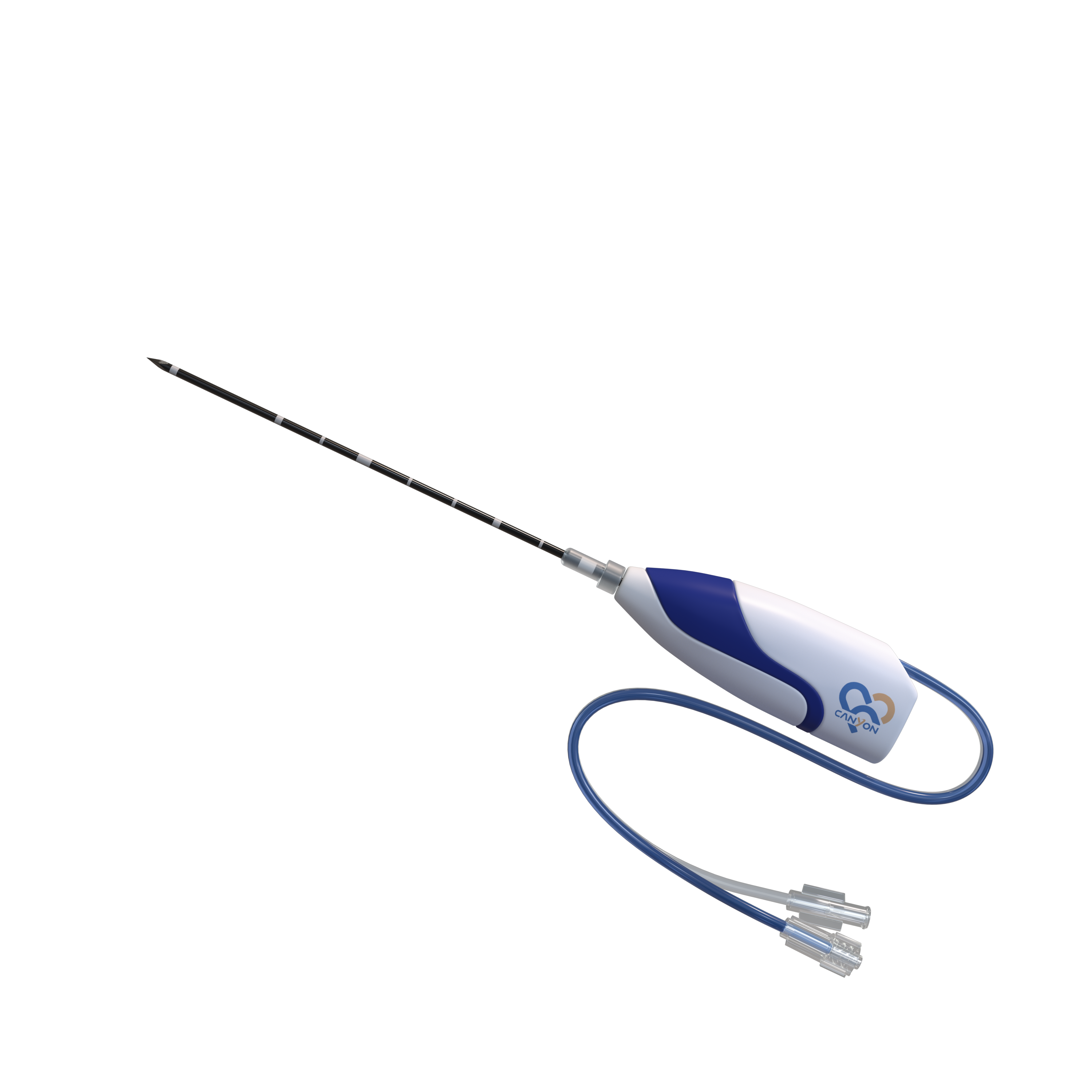

XphereTip® Antennas

Ref. no Diameter Active Tip Total Length
KY-2450B-QT29 13G 31 MM 100 MM
KY-2450B-QT30 13G 31 MM 150 MM
KY-2450B-QT31 13G 31 MM 200 MM
KY-2450B-QT32 13G 31 MM 250 MM
KY-2450B-QT33 13G 31 MM 300 MM
KY-2450B-QT4 15G 25 MM 100 MM
KY-2450B-QT5 15G 25 MM 150 MM
KY-2450B-QT6 15G 25 MM 200 MM
KY-2450B-QT7 15G 25 MM 250 MM
KY-2450B-QT8 15G 25 MM 300 MM



ThyTip® Antennas

Ref. no Diameter Active Tip Total Length
KY-2450B-5 16G 3 MM 100 MM
KY-2450B-13 16G 3 MM 70 MM
KY-2450B-4 18G 3 MM 70 MM
KY‑2450A‑14
 19G 3MM 70MM

SureTip® Antennas

Ref. no Diameter Active Tip Total Length
KY‑2450B‑T4 15G 11 mm 100 mm
KY‑2450B‑T6 15G 11 mm 150 mm
KY‑2450B‑T7 15G 11 mm 200 mm
KY‑2450B‑T10 15G 11 mm 250 mm
KY‑2450B‑T14 15G 11 mm 300 mm
KY‑2450A‑11 16G 5 mm 130 mm
KY‑2450B‑T1 16G 11 mm 100 mm
KY‑2450B‑T2 16G 11 mm 150 mm
KY‑2450B‑T3 16G 11 mm 200 mm
KY‑2BBC‑24D 16G 11 mm 300 mm
KY‑2450B‑T11 18G 11 mm 100 mm
KY‑2450B‑T5 18G 11 mm 150 mm
KY‑2450B‑T13 18G 11 mm 200 mm





Ref G Compatible with… Exposure
CN‑13/89‑1 13G KY‑2450B‑T6 and KY‑2450B‑QT5 34,1 mm
CN‑13/78‑1 13G KY‑2450B‑T6 and KY‑2450B‑QT5 45,1 mm
CN‑13/139‑1 13G KY‑2450B‑T7 and KY‑2450B‑QT6 34,1 mm
CN‑13/128‑1 13G KY‑2450B‑T7 and KY‑2450B‑QT6 45,1 mm
CN‑15/89‑1 15G KY‑2450B‑T2 and KY‑2450B‑T5 34,1 mm
CN‑15/78‑1 15G KY‑2450B‑T2 and KY‑2450B‑T5 45,1 mm
CN‑15/139‑1 15G KY‑2450B‑T3 and KY‑2450B‑T13 34,1 mm
CN‑15/128‑1 15G KY‑2450B‑T3 and KY‑2450B‑T13 45,1 mm



Ref. no Description
KY-NPTC-1-01  Trolley for use with MaxBlate® Generators

More information?

Request more information at the contact button.
We will be happy to assist.
