PAD Treatment
Stents and balloon catheters for peripheral arterial disease

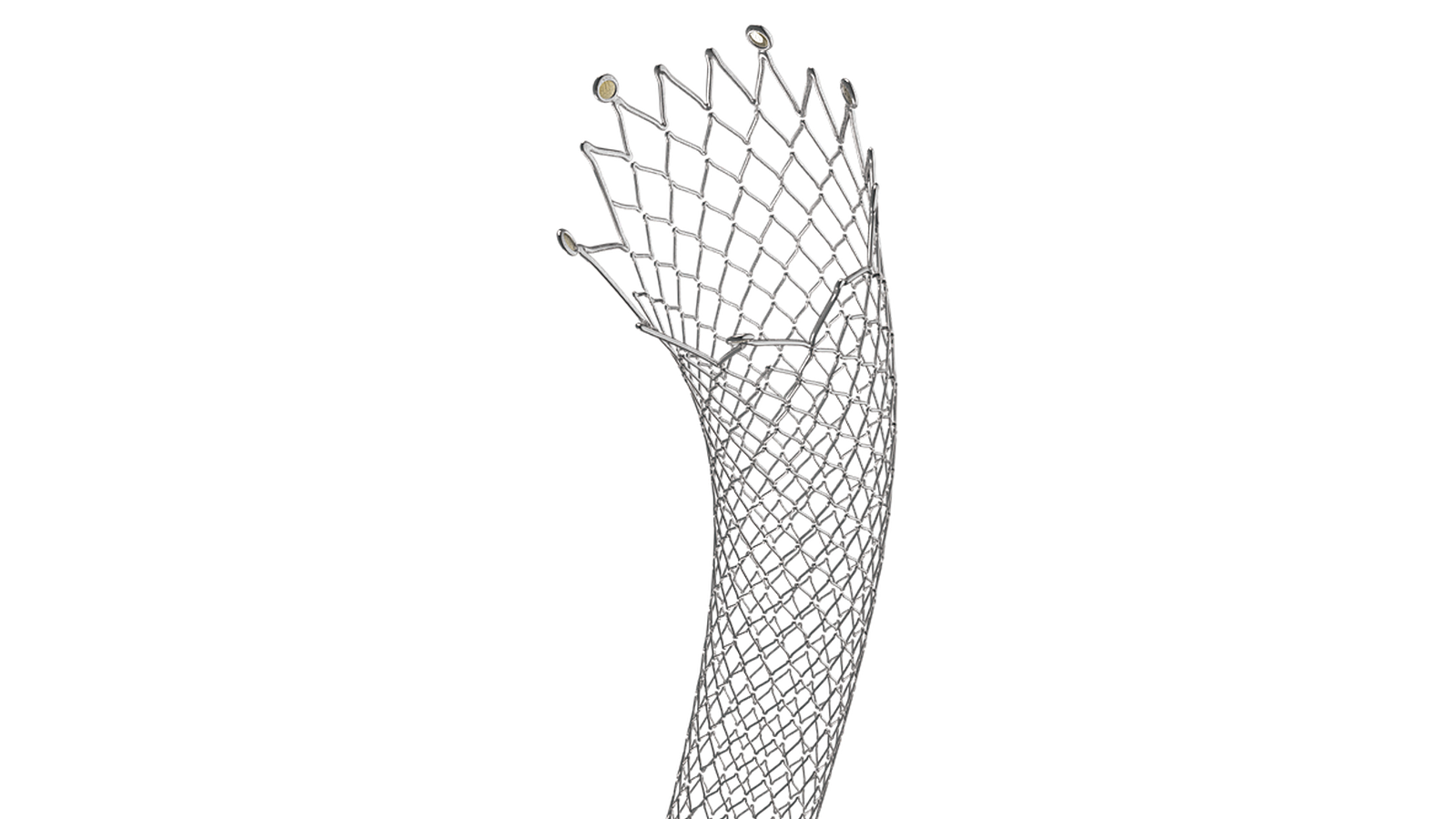

The ZENFLEX™ Peripheral Stent System is designed to deliver a self-expanding stent to the iliac artery, superficial femoral arteries or proximal popliteal arteries via a 6 Fr delivery system.
Its unique helical structure, combined with multiple connecting bridges and a micromesh design, provides excellent stent flexibility and immediate vessel wall apposition. The micromesh design also helps maximize vessel patency by decreasing tissue prolapse.
Features
- Self-expanding nitinol stent with open helical design for excellent flexibility
- Micromesh design for high radial strength and reduced tissue prolapse
- Controlled release system with ergonomic handle for one-handed deployment
- Six gold/tantalum markers at each end for enhanced visibility

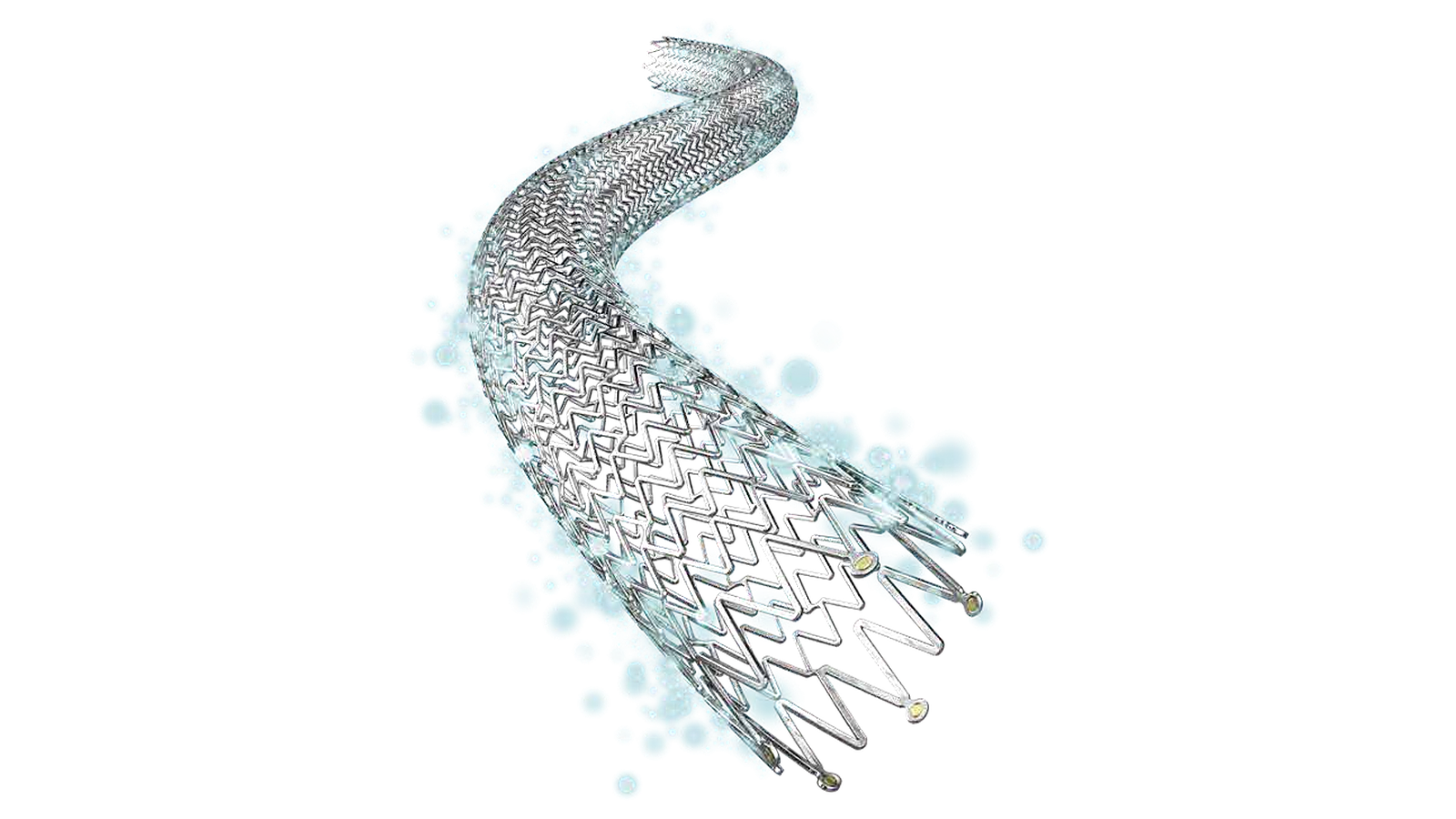

The ZENFLEX™ Pro Peripheral Drug Eluting Stent System is designed especially for complex and restenotic symptomatic lesions. It is based on the ZENFLEX™ peripheral stent platform, which offers excellent flexibility, high radial strength and immediate vessel wall apposition.
The stent carries 3 µg/mm² of paclitaxel in a polymer free coating applied with ultrasound spray technology. It provides effective drug tissue concentration within 90 days and converts into a bare stent with complete drug delivery after 180 days
Features
- Paclitaxel eluting stent based on the ZENFLEX™ platform
- Polymer free coating with no adhesives or excipients
- Drug dose density of 3 µg/mm² applied by ultrasound spray technology
- Converts to a bare metal stent after complete drug delivery

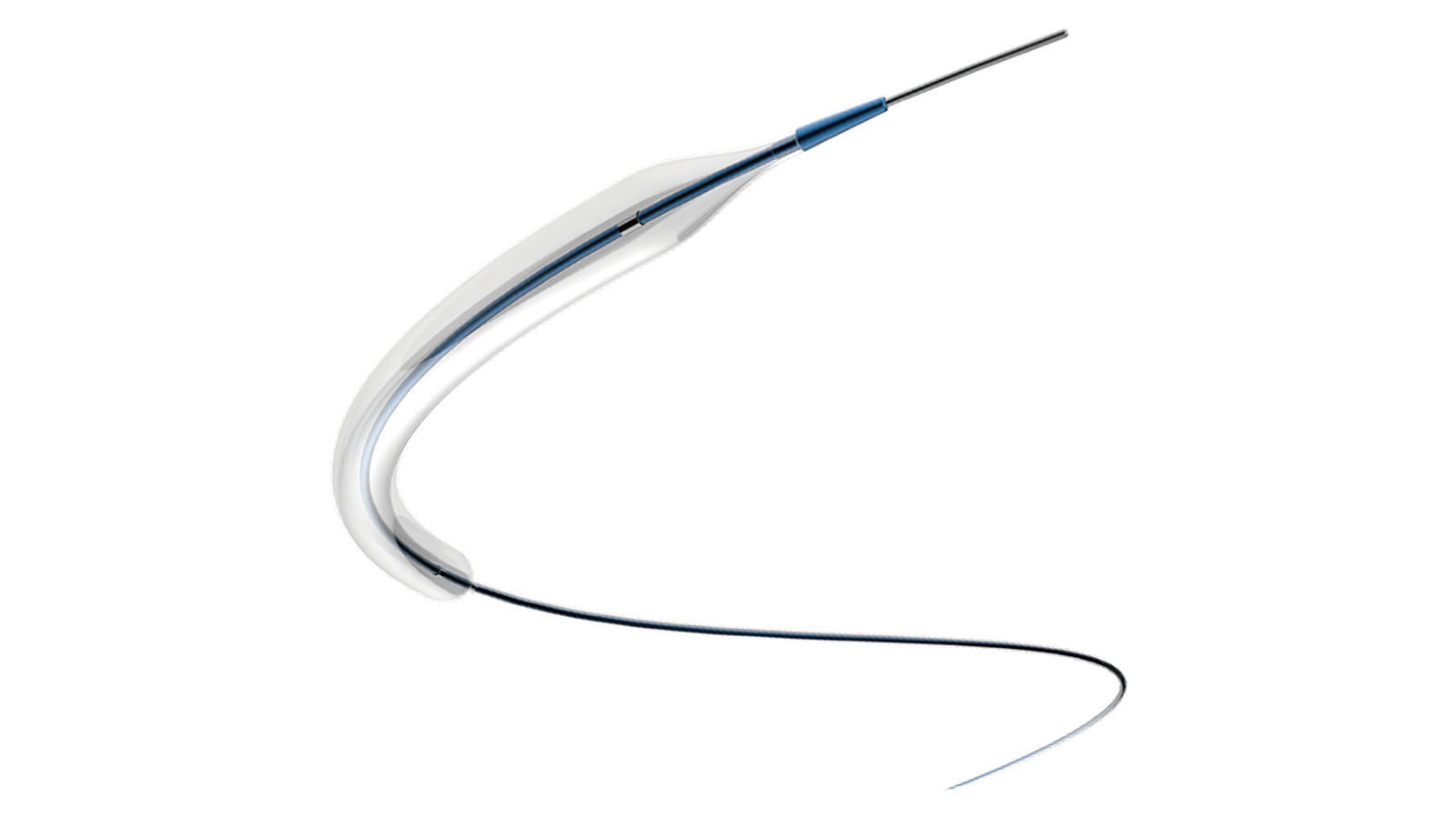

The ZENFLOW™ PTA Balloon Catheter is a semi-compliant balloon on an over the wire (OTW) catheter. The series is designed for easy access to the most challenging anatomies and is compatible with 0.035", 0.018" and 0.014" standard guidewires.
Features
- Semi-compliant OTW balloon catheter on three guidewire platforms
- Balloon diameters from 1.25 to 12 mm and lengths up to 220 mm
- Low crossing profile with durable hydrophilic coating
- Flexible, short and cone catheter tip

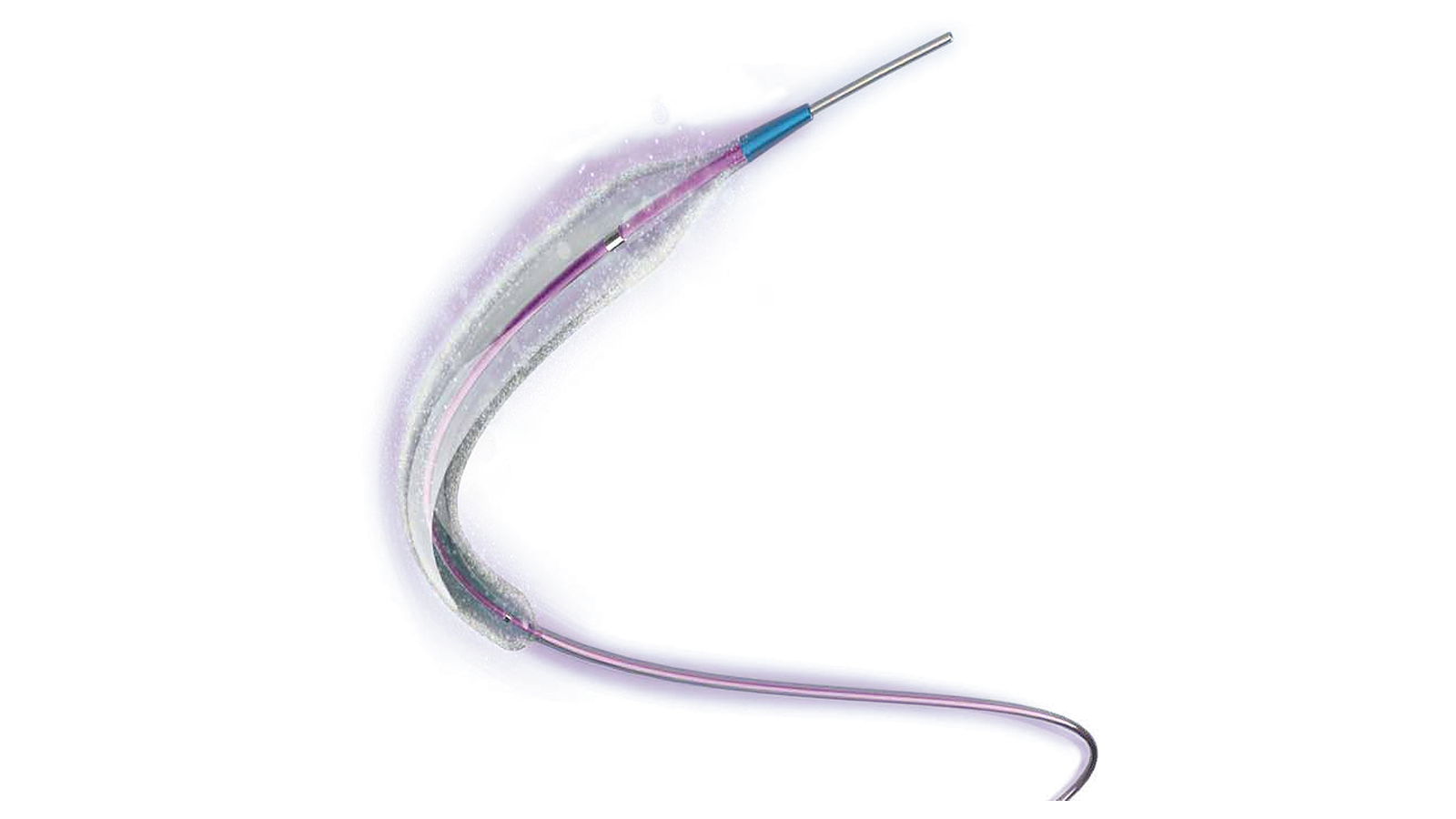

The ZENFluxion™ Drug Coated PTA Balloon Catheter is indicated for percutaneous transluminal angioplasty of stenosis or occlusion lesions in the iliac, femoral or popliteal arteries. It is based on the ZENFLOW™ PTA balloon platform.
Its UltraFree™ Coating Technology controls the paclitaxel crystallisation process, resulting in a uniform and stable microcrystal drug coating. The coating allows rapid drug transfer to the arterial wall and prevents early drug flaking during procedure preparation and device tracking.
Features
- Paclitaxel coated balloon with a drug dose of 3 µg/mm²
- UltraFree™ Coating Technology for a uniform and stable microcrystal coating
- Coating designed to prevent early drug flaking during preparation and device tracking
- Available on 0.035", 0.018" and 0.014" platforms

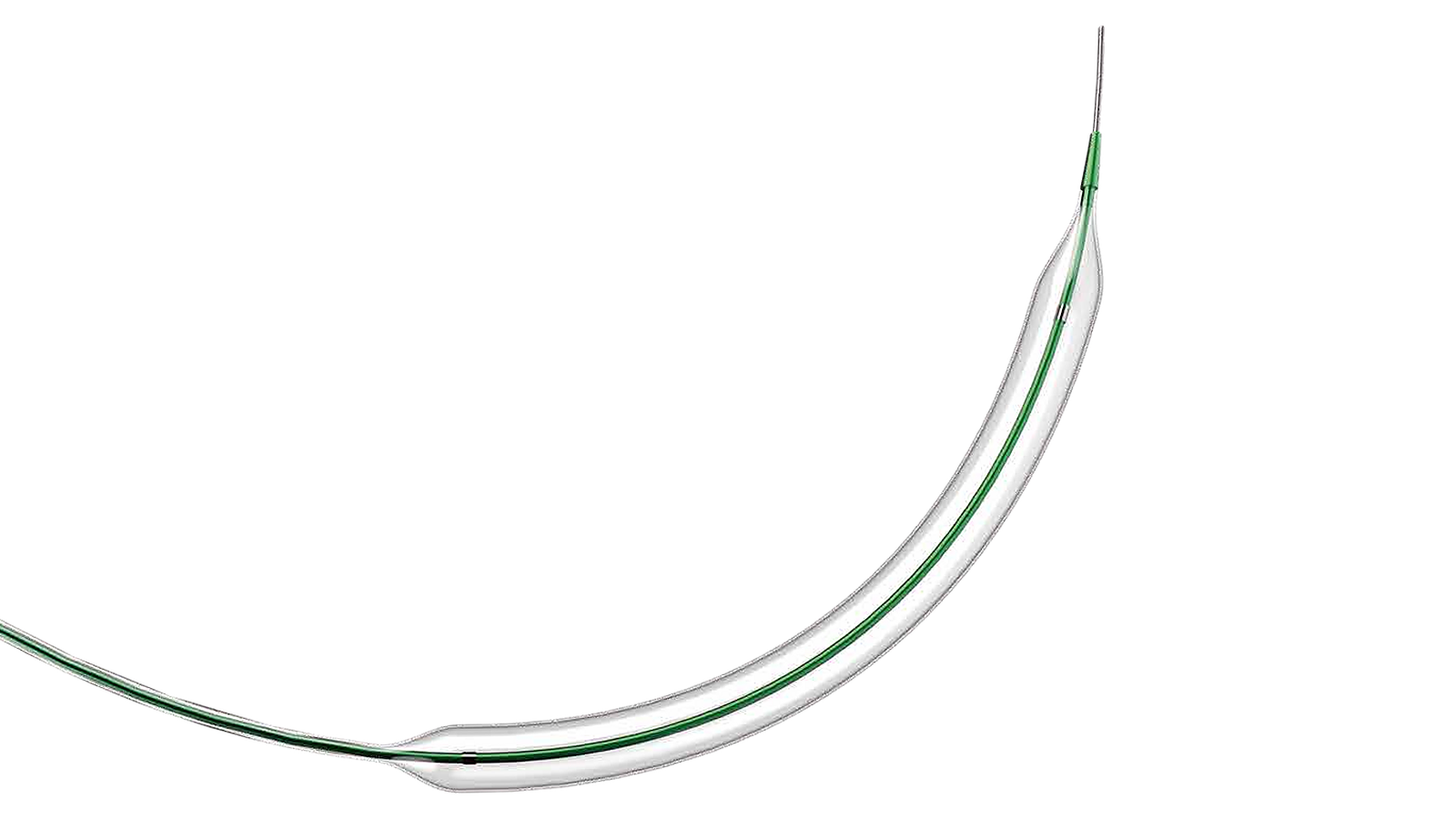

The ZENFLOW™ HP is a high pressure, semi-compliant over the wire (OTW) balloon catheter for angioplasty of resistant and complex lesions. It has a rated burst pressure of up to 24 atm and is designed to deliver even pressure distribution on the vessel wall during dilatation.
The balloon is made of nylon and Pebax, allowing a thinner wall with higher rated burst pressure and lower compliance. A dual lumen shaft provides short deflation times and good pushability, while a soft, low profile tip gives easy access to complex anatomy.
Features
- Rated burst pressure of up to 24 atm
- Advanced balloon folding for consistent low profiles and excellent rewrap
- Dual lumen shaft for short deflation times and good pushability
- Diameters from 3 to 10 mm, lengths from 20 to 200 mm and 0.035" guidewire compatibility
